This 37GB-555 reduction motor is an outstanding performance reduction motor product launched by Chaoya Company. This 37GB-555 reduction motor is compatible with a voltage range of 6V to 24V, offers multiple reduction ratio solutions, and features high torque output at low speeds. It operates smoothly with low noise. The 37GB-555 reduction motor can be effectively adapted to a variety of products, such as household appliances, audio-visual products, electronic door locks, etc.

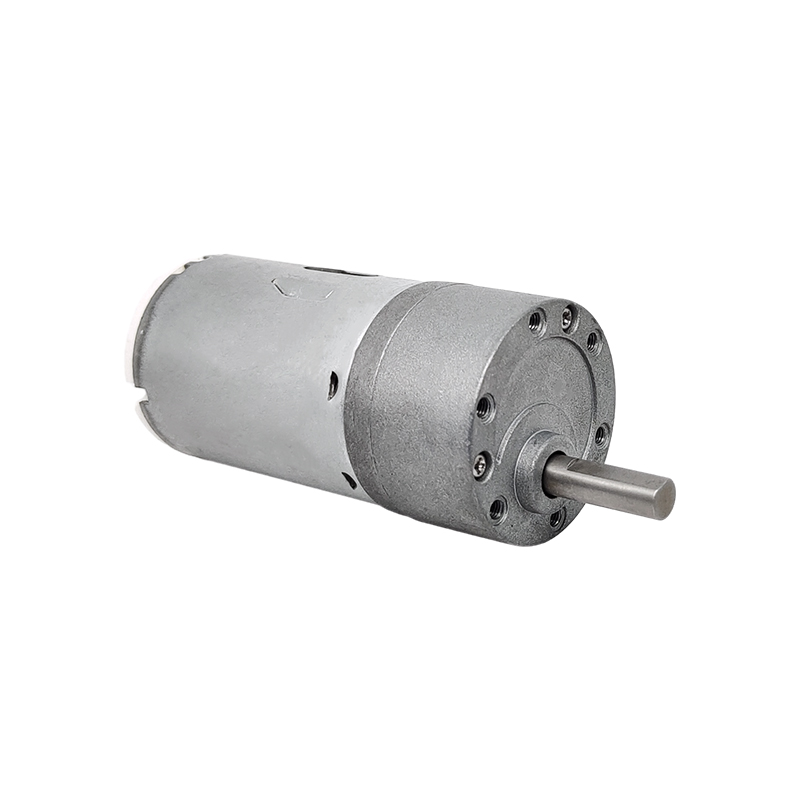

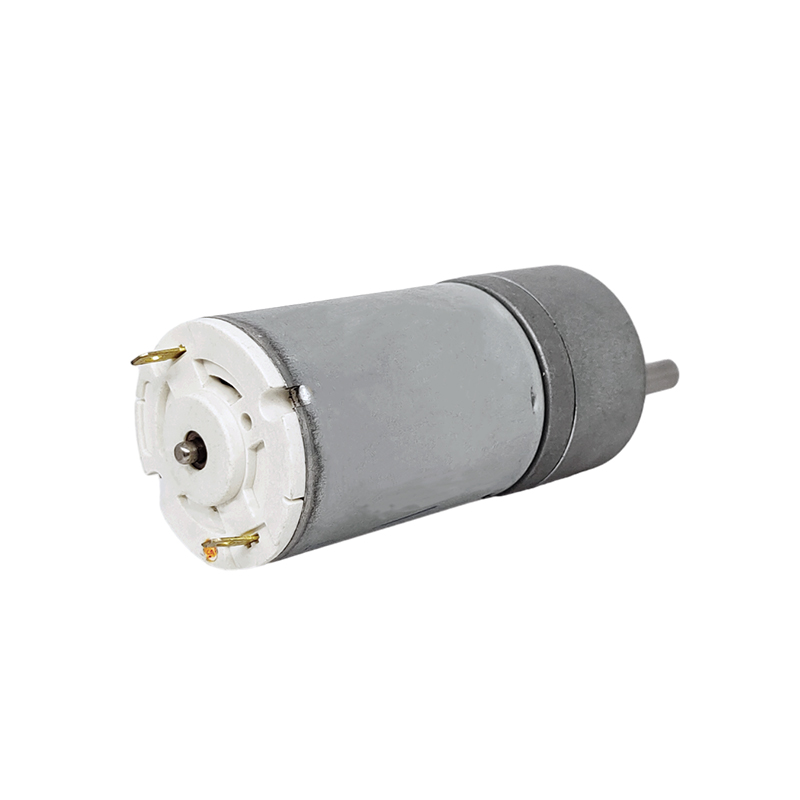

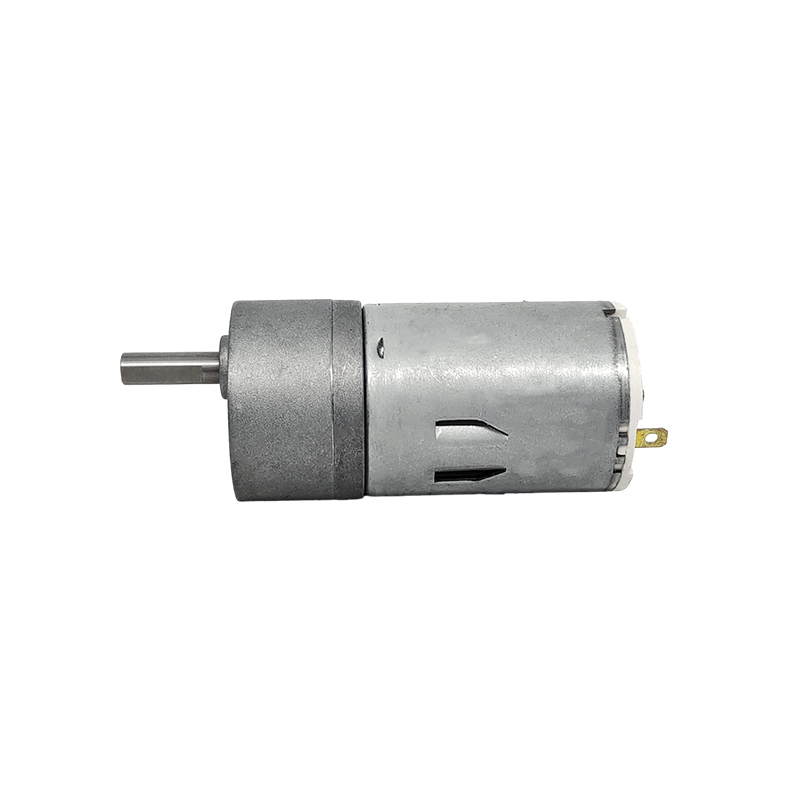

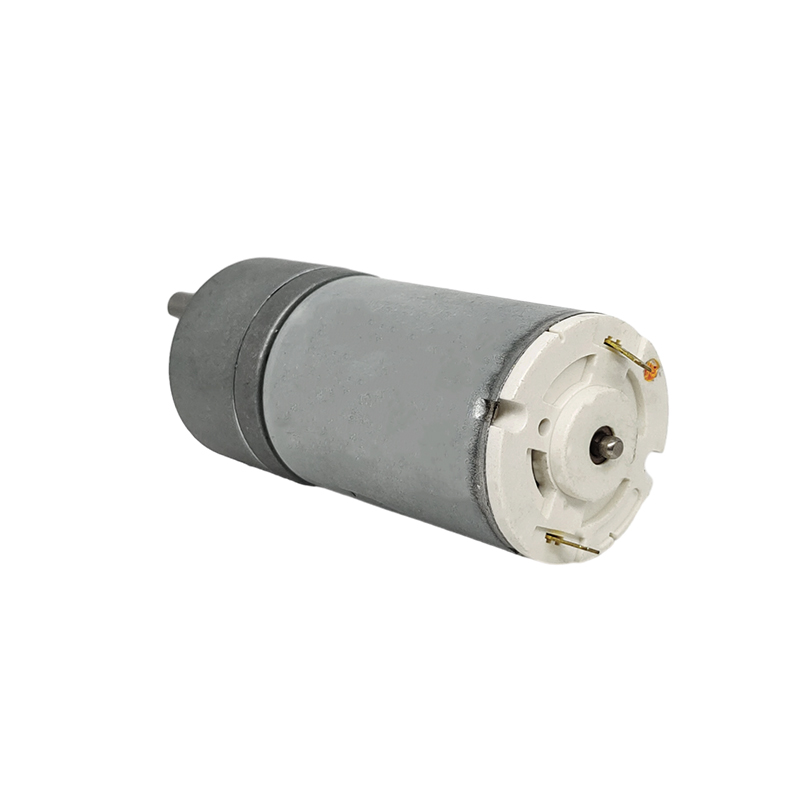

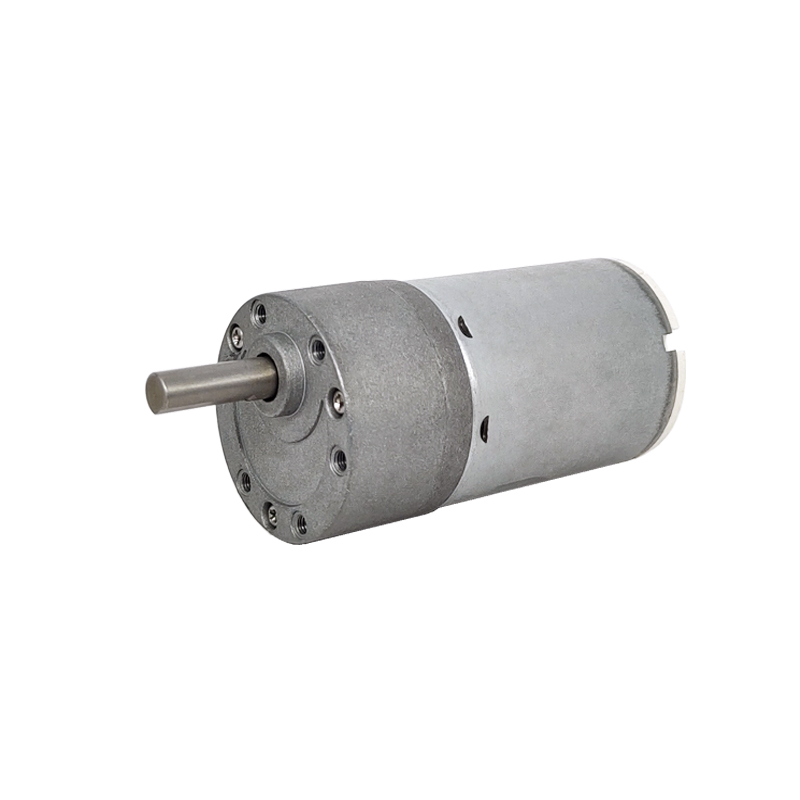

The 37GB-555 reduction motor is a reduction motor with excellent performance. This 37GB-555 reduction motor adopts a 37mm eccentric reduction gearbox to match the daily use of related products.
The 37GB-555 gear motor launched by Chaoya Company offers multiple voltage options in terms of voltage, such as being used under 6V, 12V, and 24V DC voltages. Meanwhile, it can provide various speed ratio schemes based on the actual parameter requirements of customers to meet the torque demands at different rotational speeds. The 37GB-555 reduction motor operates very smoothly with low noise. The overall structure design is compact and the volume is small.
Meanwhile, the 37GB-555 reduction motor has a wide range of applications and can be used in various products such as electric curtains, window openers, smart toilets, printers, and electronic door locks.
| Motor +GearBox Parameters: | |||||||||
| Gear Motor Model | Reducer Ratio | 13 | 30 | 50 | 100 | 120 | 300 | 350 | 630 |
| 37GB-RC555 | No Load Rotating Speed(rpm) | 577 | 250 | 150 | 75 | 63 | 25 | 21 | 12 |
| Rated Torque(kgf.cm) | 2.83 | 6.53 | 9.6 | 19.2 | 20.35 | 30 | 30 | 30 | |
| Rated Rotating Speed(rpm) | 523 | 227 | 136 | 68 | 57 | 23 | 19 | 11 |
